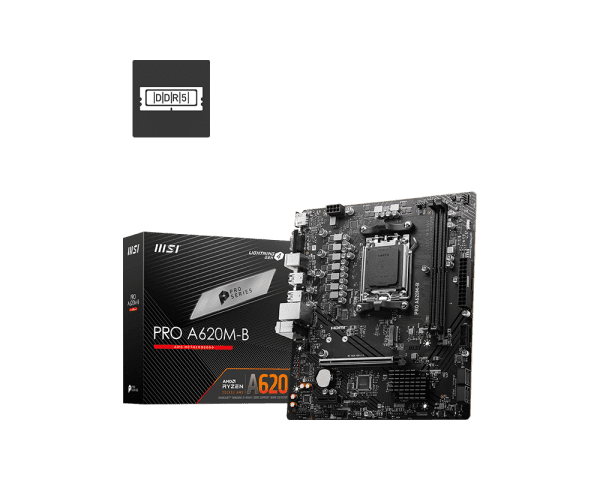

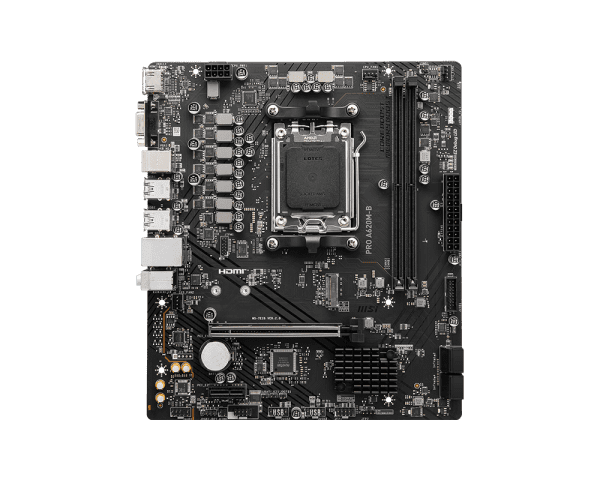

MSI Pro A620M-B M-ATX AM5 DDR5 Gaming Motherboard

₨27,499

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

In stock

Get an email the moment this price drops.

Description
Additional information

MSI Pro A620M-B M-ATX AM5 DDR5 Gaming Motherboard

Specifications
Chipset	AMD A620
CPU	Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors
Socket	AM5
Memory	2x DDR5, Max 128GB, Dual-Channel, Non-ECC, Un-buffered, AMD EXPO support
Memory Support	DDR5 6800+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MT/s • 1DPC 1R up to 6800+ MHz • 1DPC 2R up to 6000+ MHz
Onboard Graphics	1x HDMI™ 2.1 (up to 4K@60Hz)* 1x VGA (2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz) *Only available on processors with integrated graphics
Expansion Slots	1x PCI-E x16 • x16 (Ryzen™ 9000/7000) • x8 (Ryzen™ 8700/8600/8400) • x4 (Ryzen™ 8500/8300) 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 (CPU), PCI_E2 Gen PCIe 3.0 (Chipset)
Audio	Realtek® ALC897 Codec, 7.1-Channel HD Audio
Storage	1x M.2 (PCIe 4.0 x4, 2280/2260) 4x SATA 6G
RAID	RAID 0, 1, 10 (SATA only)
USB Ports	Rear: 2x USB 2.0, 4x USB 5Gbps Type-A Front: 4x USB 2.0, 2x USB 5Gbps Type-A
LAN	Realtek® RTL8125BG 2.5G LAN
Internal I/O	1x ATX Power Connector, 1x CPU Power Connector 1x CPU Fan, 2x System Fan 2x Front Panel (JFP), 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD), 1x COM Port (JCOM) 1x JARGB_V2, 1x JRGB, 1x TPM Header (TPM 2.0) 4x USB 2.0 ports, 2x USB 5Gbps Type-A ports
LED Feature	4x EZ Debug LED

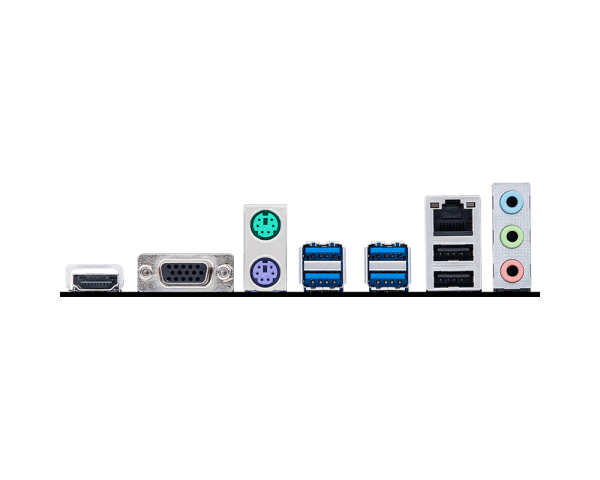

Back Panel Ports	HDMI, VGA, Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0 LAN port, Audio connectors
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	mATX, 215mm x 243.84mm
Box Contents	Motherboard, User Manual, Driver CD, I/O Shield, SATA Cables (varies by region)

Link to official product page

Brands	MSI
Socket Brands	AMD
