New

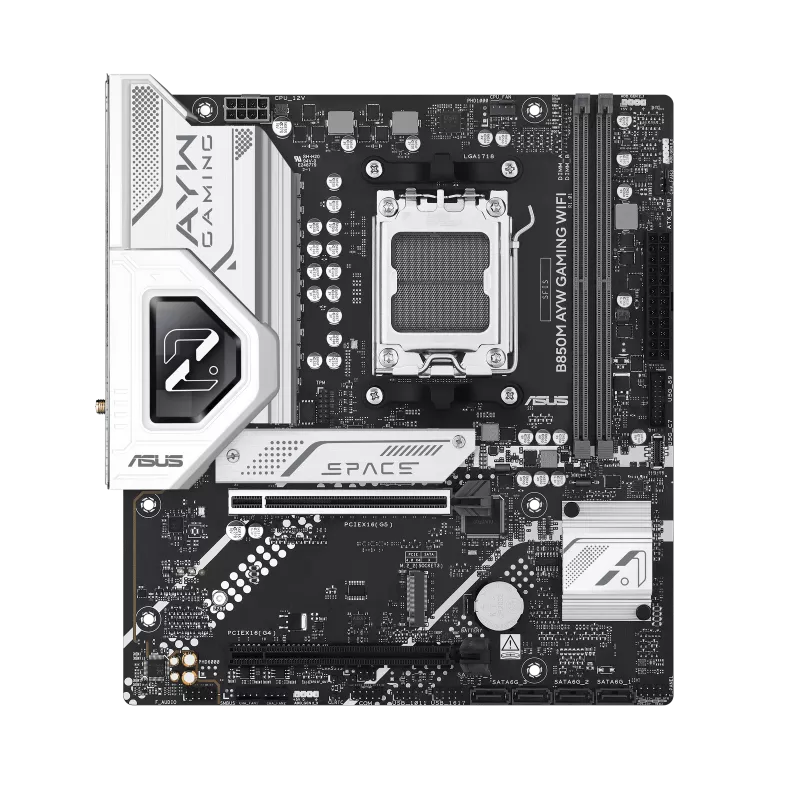

Asus B850M AYW Gaming WiFi M-ATX AM5 DDR5 Gaming Motherboard

Name: Asus B850M AYW Gaming WiFi M-ATX AM5 DDR5 Gaming Motherboard
Brand: ASUS
SKU: RBTGMB00387
Price: 48499 PKR
Availability: InStock

₨48,499

2 Years Local WarrantyReplacement or Refund

ASUS B850 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

AMD Socket AM5 for AMD Ryzen 9000 and 8000 and 7000 Series
2x DIMM, Up To 128GB DDR5, Dual Channel, EXPO and AEMP
2x M.2 (PCIe 5.0 x4 and PCIe 4.0 x4), 4x SATA 6Gb/s
Wi-Fi 6, Bluetooth 5.3, Realtek 2.5Gb Ethernet, HDMI 4K@60Hz

In stock

Get an email the moment this price drops.

Description
Additional information

Asus B850M AYW Gaming WiFi M-ATX AM5 DDR5 Gaming Motherboard

Specification Group	Motherboard Details
General Profile	Model: B850M AYW GAMING WIFI Form Factor: micro-ATX Form Factor \| 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) News & Updates: Socket AM5, Please visit our GLOBAL website to check and download the latest updates.
CPU, Chipset & Memory	CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors \| Supports up to AMD 170W CPU Chipset: AMD B850 Chipset Memory: 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Graphics, Slots & Storage	Graphics: 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) Expansion Slots: – AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode) – AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) – AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (support x4 mode) Storage: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports – AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) – AMD B850 Chipset: 4 x SATA 6Gb/s ports RAID Support: AMD RAIDXpert2 Technology – Ryzen™ 9000 Series Processors: RAID 0/1/5/10 – Ryzen™ 8000 Series Processors: RAID 0/1 – Ryzen™ 7000 Series Processors: RAID 0/1/10
Networking, USB & Audio	Ethernet: 1 x Realtek 2.5Gb Ethernet \| ASUS LANGuard Wireless & Bluetooth: Wi-Fi 6 (1×1 Wi-Fi 6 802.11ax, Supports 2.4/5GHz frequency band) \| Bluetooth® v5.3 USB: – Rear USB (Total 8 ports): 2 x USB 10Gbps ports (2 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) – Front USB (Total 7 ports): 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

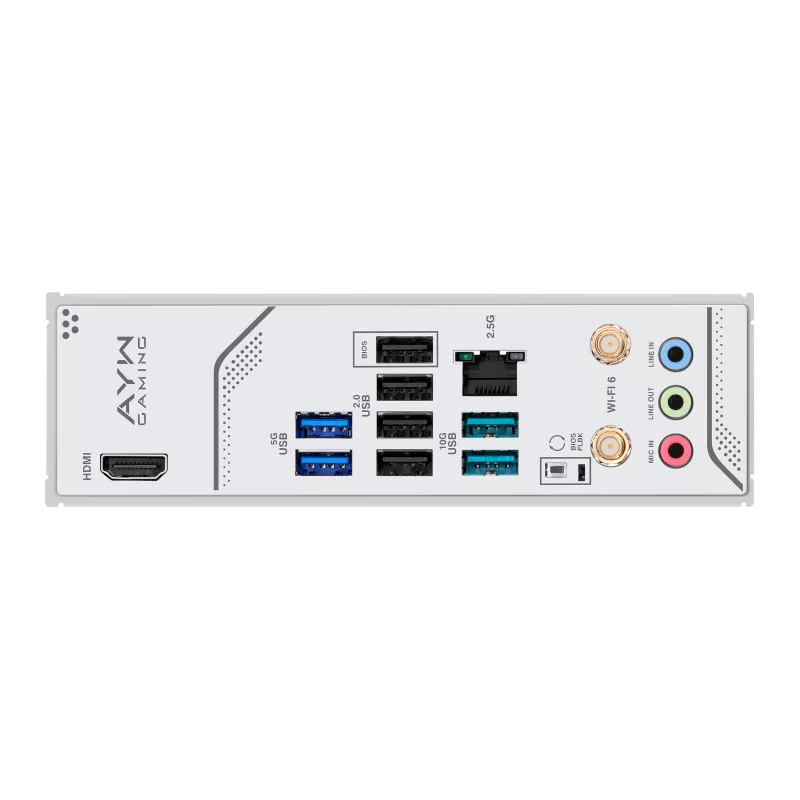

I/O Connectors	Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button Internal I/O Connectors: – Fan and Cooling Related: 1 x 4-pin CPU Fan header, 3 x 4-pin Chassis Fan headers – Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector – Storage Related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports – USB: 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports – Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header
Features, Software & BIOS	Special Features: – ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O – ASUS Q-Design: M.2 Q-Latch, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot – ASUS Thermal Solution: M.2 heatsink, VRM heatsink design – ASUS EZ DIY: Pre-mounted I/O shield, BIOS FlashBack™ button, BIOS FlashBack™ LED, SafeSlot – Aura Sync: Addressable RGB Gen 2 headers Software Features: – ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS AI Advisor, ASUS DriverHub, TurboV Core, ASUS GlideX, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial) – UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE

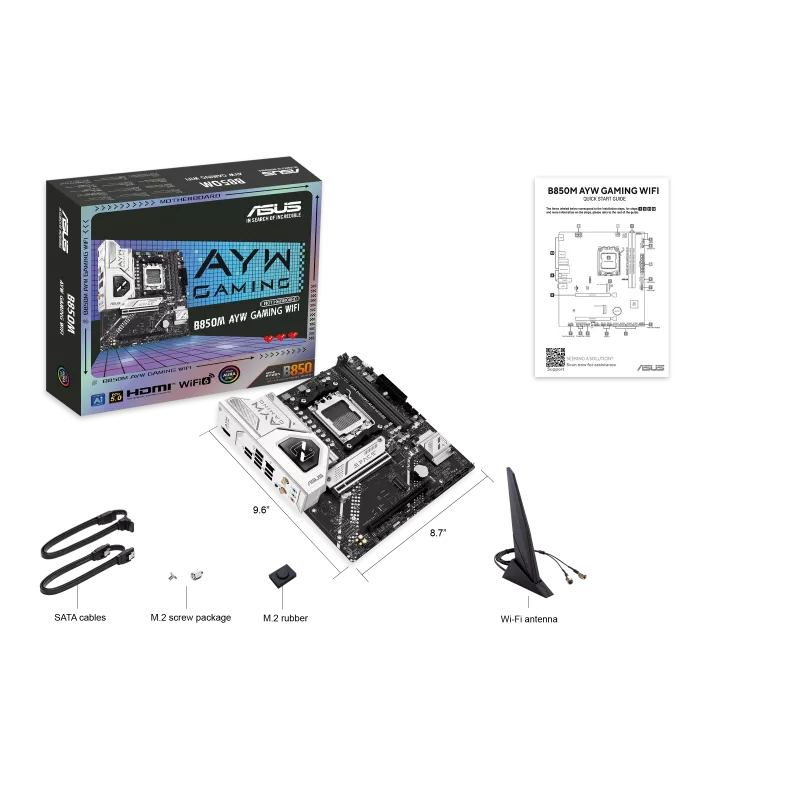

Accessories & OS	Accessories: – Cables: 2 x SATA 6Gb/s cables – Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 1 x M.2 rubber package, 1 x Screw package for M.2 SSD – Documentation: 1 x Quick start guide Operating System: Windows® 11, Windows® 10 64-bit
