Asus ROG Maximus XI Hero ATX LGA1151 DDR4 Gaming Motherboard – USED

Name: Asus ROG Maximus XI Hero ATX LGA1151 DDR4 Gaming Motherboard - USED
Brand: ASUS
SKU: RBTGMB00403-used
Price: 19999 PKR
Availability: InStock

₨19,999

3 Months Local WarrantyReplacement or Refund

Intel Z390 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 4400MHz, dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2

LGA1151 socket for 9th/8th -gen Intel® Core™ desktop processors
Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips and Philips Hue
Perfected cooling with dedicatedwater cooling zones, M.2 heatsink and various fan controls
Gaming connectivity: Intel Gigabit Ethernet, LANGaurd, dual M.2 and USB 3.1 Gen 2
5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles tailor-made for your rig
Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
Gaming durability: ASUS SafeSlot and premium components for maximum durability

In stock

Get an email the moment this price drops.

Description
Additional information

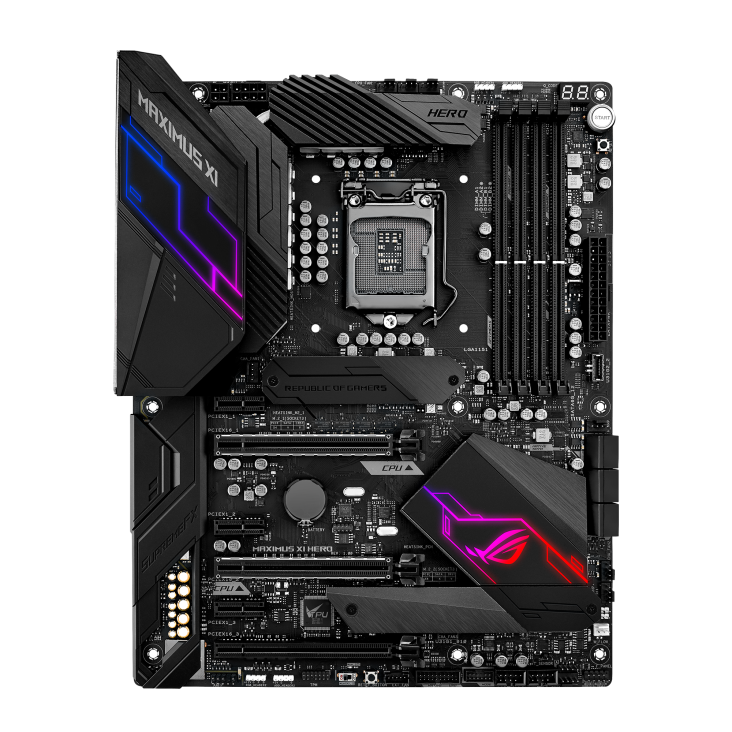

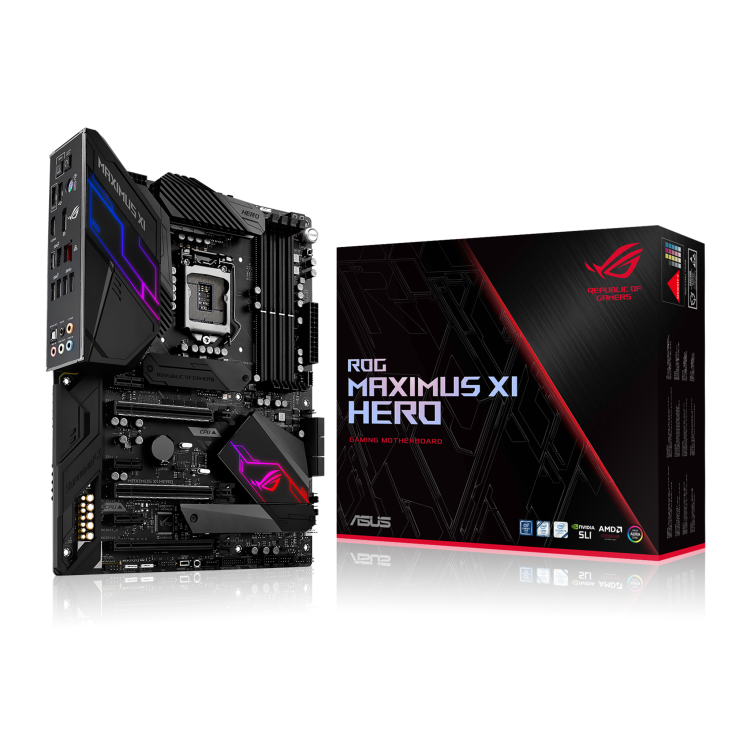

Asus ROG Maximus XI Hero ATX LGA1151 DDR4 Gaming Motherboard

Specification Group	ASUS ROG MAXIMUS XI HERO Details
CPU & Chipset	Model Name: ROG MAXIMUS XI HERO Processor Socket: LGA1151 CPU Compatibility: 9th and 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors (14nm) Processor Features: Supports Intel® Turbo Boost Technology 2.0* Chipset: Intel® Z390 *Intel® Turbo Boost Technology 2.0 support depends on the CPU type.
Memory Support	Capacity & Slots: 4 × DDR4 DIMM sockets supporting up to 128 GB Memory Architecture: Dual Channel Memory Architecture, OptiMem II, MemOK! II Supported Frequencies: DDR4 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Module Support: Non-ECC, Un-buffered Memory; Supports Intel® Extreme Memory Profile (XMP)
Graphics & Multi-GPU	Integrated Display Outputs:* – 1 × DisplayPort 1.2 (Max resolution 4096 × 2304 @ 60 Hz) – 1 × HDMI 1.4b port (Max resolution 4096 × 2160 @ 30 Hz) Requires CPU with integrated Intel® UHD Graphics support. Multi-GPU Technologies:* Supports NVIDIA® 2-Way SLI™ Technology and AMD 3-Way CrossFireX™ Technology
Expansion Slots	– 2 × PCIe 3.0 x16 slots (supports x16 or dual x8 or x8/x4/x4 modes) – 1 × PCIe 3.0 x16 slot (max at x4 mode)* – 3 × PCIe 3.0 x1 slots *The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6, operating at x2 mode by default.
Storage Support	M.2 Connectors: – 1 × M.2 Socket 3 (Key M, type 2242/2260/2280/22110, PCIe 3.0 x4 mode) – 1 × M.2 Socket 3 (Key M, type 2242/2260/2280, SATA & PCIe 3.0 x4 mode)* SATA & RAID: 6 × SATA 6Gb/s ports (Supports RAID 0, 1, 5, 10) Memory Acceleration: Intel® Optane™ Memory Ready *When M.2_1 Socket 3 is operating in SATA mode, the SATA6G_2 port will be disabled.
Audio & Networking	LAN Controller: Intel® I219V 1Gb Ethernet Controller with Anti-surge LANGuard & ROG GameFirst Technology Audio Hardware: ROG SupremeFX 8-Channel HD Audio CODEC S1220 + ESS® ES9023P DAC Audio Capabilities: 120 dB SNR stereo playback output, 113 dB SNR recording input, impedance sensing for front and rear headphones, SupremeFX Shielding, Gold-plated audio jacks Software Features: Sonic Radar III, Sonic Studio III + Sonic Studio Link *Due to HDA bandwidth limitations, 32-Bit/192kHz playback is not supported for 8-Channel audio.
USB Connectivity	Rear Panel USB: – 4 × USB 3.2 Gen 2 ports (4 × Type-A [red]) – 2 × USB 3.2 Gen 1 ports (2 × Type-A [blue]) – 2 × USB 2.0 ports Internal Headers: – 1 × USB 3.1 Gen 2 front panel connector – 1 × USB 3.1 Gen 1 header (supports additional 2 USB 3.1 Gen 1 ports) – 2 × USB 2.0 headers (supports additional 4 USB 2.0 ports)
Internal Connectors	– Power: 1 × 24-pin EATX Main Power, 1 × 8-pin EATX 12V Power, 1 × 4-pin ATX 12V Power – Fan & Cooling: 1 × 4-pin CPU Fan, 1 × 4-pin CPU OPT Fan, 3 × 4-pin Chassis Fan, 1 × 4-pin AIO Pump, 1 × 4-pin W_PUMP+, 1 × H_AMP fan, 1 × EXT_Fan header – Water Cooling Monitoring: 1 × W_IN header, 1 × W_OUT header, 1 × W_FLOW header, 1 × Thermal sensor connector – Lighting Headers: 2 × Aura Addressable Strip headers, 2 × Aura RGB Strip headers – Controls & Buttons: Start button, Reset button, ReTry button, MemOK! II switch – System & Misc: 2 × M.2 slots, 6 × SATA 6Gb/s, 1 × Front Panel Audio (AAFP), 1 × Node connector, 1 × TPM connector, 1 × System panel header

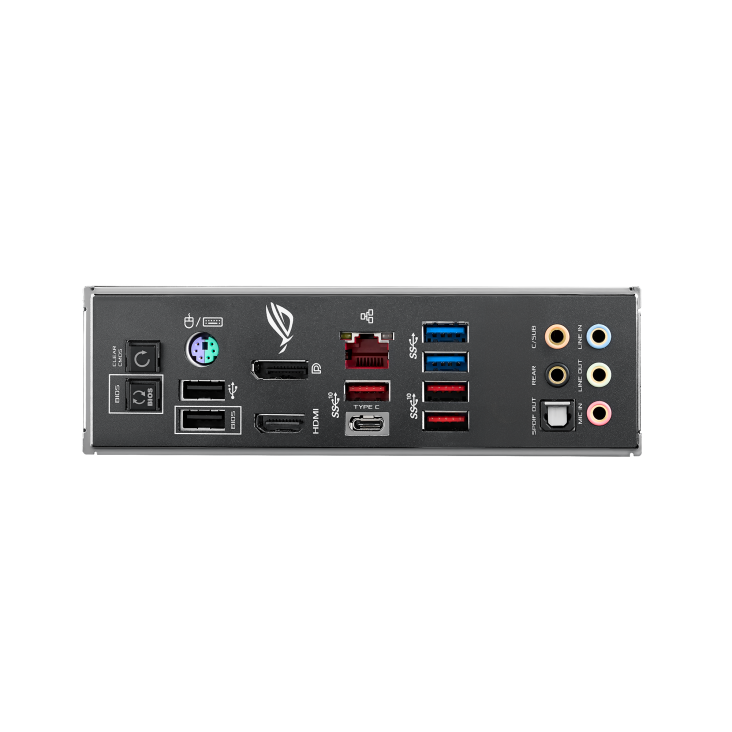

Back Panel Ports	4 × USB 3.2 Gen 2 (red) \| 2 × USB 3.2 Gen 1 (blue) \| 2 × USB 2.0 \| 1 × DisplayPort \| 1 × HDMI \| 1 × Intel® LAN (RJ45) \| 1 × Optical S/PDIF Out \| 5 × Gold-plated audio jacks \| 1 × PS/2 Keyboard/Mouse combo \| 1 × USB BIOS FlashBack™ button \| 1 × Clear CMOS button
Features & Software	ROG Hardware & Power: Extreme Engine Digi+ (MicroFine Alloy Chokes, 10K Black Metallic Capacitors), Extreme Tweaker, 5-Way Optimization, Pre-mounted I/O Shield, ASUS NODE ASUS Q-Design: ASUS Q-Code, Q-LED (CPU, DRAM, VGA, Boot Device), Q-Slot, Q-DIMM, Q-Connector Illumination: Aura Lighting Control & Synchronization (RGB & Addressable headers) ROG Software Suite: Mem TweakIt, RAMCache III, RAMDisk, CPU-Z, GameFirst V, Sonic Studio III, Sonic Radar III System Utilities: AI Suite 3, Ai Charger, Armoury Crate, ASUS EZ Flash 3, CrashFree BIOS 3, USB BIOS FlashBack™

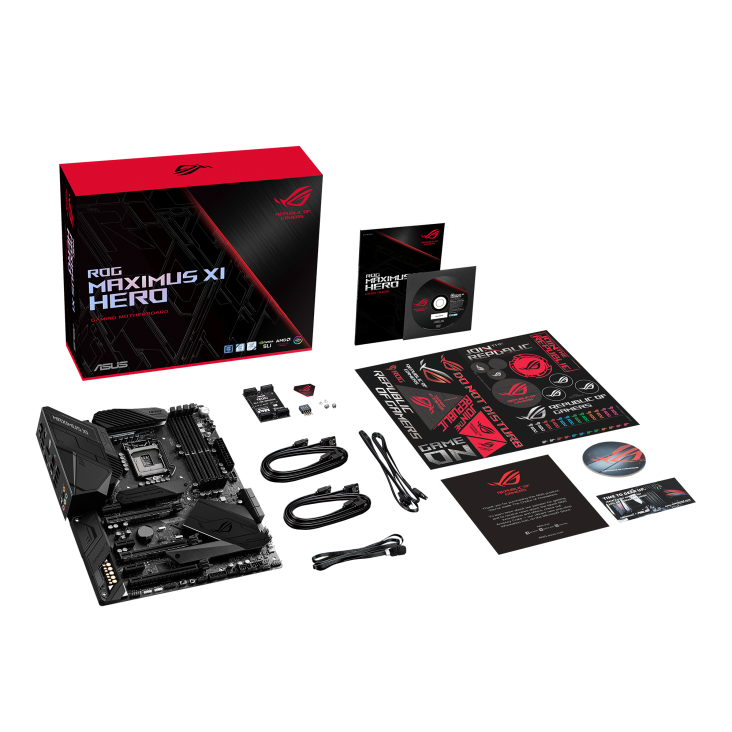

System & Physical	BIOS: 1 × 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 Supported Operating System: Windows® 10 64-bit Form Factor: ATX Form Factor (12 in × 9.6 in / 30.5 cm × 24.4 cm) Included Accessories: 1 × SLI HB BRIDGE (2-WAY-M), 4 × SATA 6Gb/s cables, 1 × M.2 Screw package, 1 × RGB extension cable (80 cm), 1 × Addressable LED extension cable, 1 × Q-Connector, 1 × ROG big sticker, 1 × ROG coaster, Support DVD, User manual
